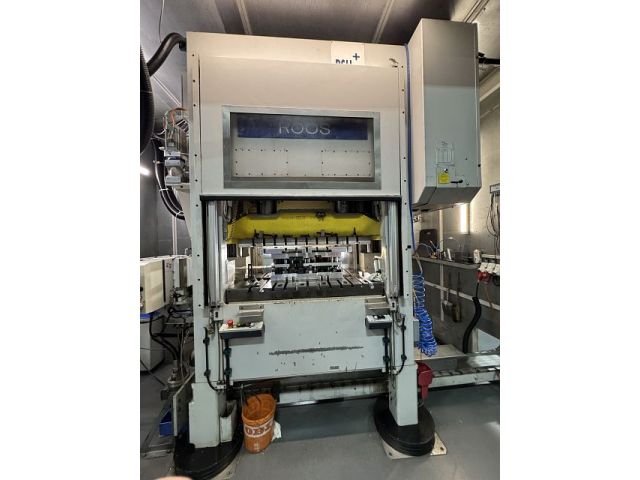

HAULICK+ROOS RSH 630-1250
Kategorije
Avtomat za štancanje - mehanski
Objekt
55629
Proizvajalec
HAULICK+ROOS
Model
RSH 630-1250
Leto
2007
Objekt
55629
| Press forces | ||
|---|---|---|
| total force (nominal): | 630 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1250 | mm |
| table surface (front-back): | 730 | mm |
| Slide | ||
|---|---|---|
| slide force: | 630 | to |
| table surface (left-right): | 1250 | mm |
| table surface (front-back): | 450 | mm |
| slide (mechan. Press) | ||
|---|---|---|
| autom. Slide adjustment: yes | ||
| stroke min.: | 12 | mm |
| stroke max.: | 60 | mm |
| stroke rate (min.): | 30 | /min |
| stroke rate (max.): | 1000 | /min |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 320 | mm |
| Strip-Feeder | ||
|---|---|---|
| feeder type: roll feeder | ||
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3000 | mm |
| space requirements -front/back-: | 1700 | mm |
| total height: | 3200 | mm |
| total weight approx.: | 12000 | kg |
| Attachments (presses) | ||
|---|---|---|
| strip feeder: yes | ||
| safety guard / safety door: yes | ||
| European CE standards: yes | ||
| Operating hours: 35,076h Feed: Sankyo v 76 roller feed PC control: 2000/670 Tool protection: Siegfried Advanced System 289 Without soundproof enclosure |
