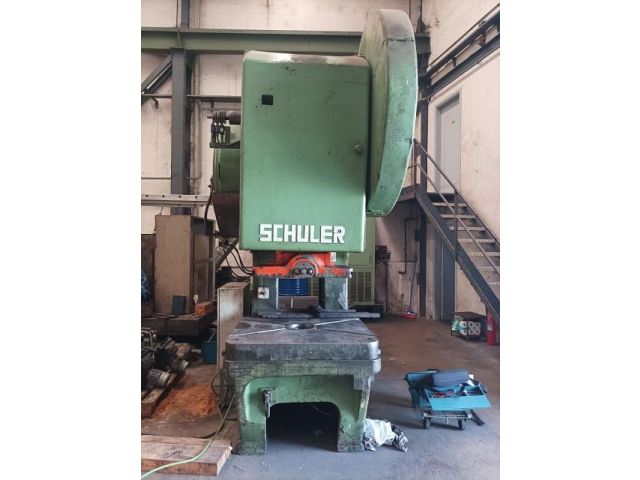

SCHULER PDR 250-500
Kategorije
EkscentriĊna stiskalnica (C okvirja)
Objekt
43587
Proizvajalec
SCHULER
Model
PDR 250-500
Last Overhaul
2002
Objekt
43587
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| frame design: C-frame, single sided | ||
| opening in table: yes | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 250 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1100 | mm |
| table surface (front-back): | 985 | mm |
| thickness of bolster plate: | 125 | mm |
| opening in bed (diameter): | 270 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 800 | mm |
| table surface (front-back): | 500 | mm |
| spigot hole diameter: | 60 | mm |
| stroke rate (max.): | 36 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 200 | mm |
| stroke min.: | 30 | mm |
| stroke max.: | 140 | mm |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 515 | mm |
| throat (C-frame): | 520 | mm |
| distance between columns (H-frame): | 440 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 25 | kW |
| mains voltage: | 400 | V |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1800 | mm |
| space requirements -front/back-: | 2800 | mm |
| total height: | 3500 | mm |
| total weight approx.: | 16000 | kg |
| Attachments (presses) | ||
|---|---|---|
| European CE standards: yes | ||
