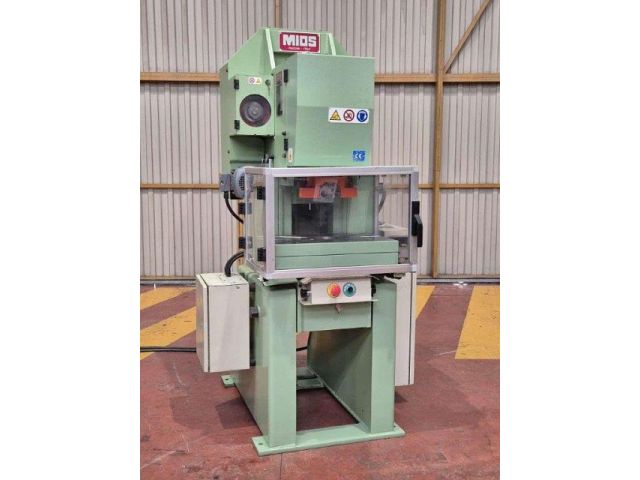

MIOS T20 FV
Kategorije
EkscentriĊna stiskalnica (C okvirja)
Objekt
55890
Proizvajalec
MIOS
Model
T20 FV
Leto
2001
Objekt
55890
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| openings in uprights: yes | ||
| number of slide actions: | 1 | |
| table cushion: no | ||
| quick die change system: no | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 20 | to |
| Slide | ||
|---|---|---|
| spigot hole diameter: | 30 | mm |
| slide (mechan. Press) | ||
|---|---|---|
| stroke min.: | 5 | mm |
| stroke max.: | 60 | mm |
| stroke rate (min.): | 60 | /min |
| stroke rate (max.): | 155 | /min |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 290 | mm |
| throat (C-frame): | 180 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 15 | kW |
| mains voltage: | 220 | V |
| mains frequency: | 50 | Hz |
| Attachments (presses) | ||
|---|---|---|
| 2-hand engagement: yes | ||
| foot engagement: yes | ||
| acc. to actual accident protection regulation: yes | ||
| European CE standards: yes | ||
