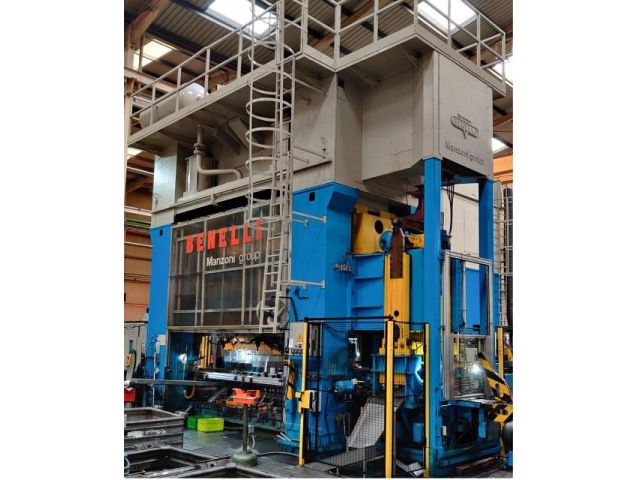

BENELLI 650T/3MR/2/12/3750X1100/LD/ET3
Kategorije
Transferna stiskalnica - mehanska
Objekt
48090
Proizvajalec
BENELLI
Model
650T/3MR/2/12/3750X1100/LD/ET3
Leto
2000
Upravljanje
SIEMENS S7 300
Objekt
48090
| Press Design | ||
|---|---|---|
| drive system: link drive | ||
| openings in uprights: yes | ||
| number of slide actions: | 2 | |
| table cushion: yes | ||
| quick die change system: yes | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 650 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 3700 | mm |
| table surface (front-back): | 1100 | mm |
| Slide | ||
|---|---|---|
| stroke: | 400 | mm |
| stroke rate (max.): | 35 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 160 | mm |
| autom. Slide adjustment: yes | ||
| stroke adjustment: no | ||
| variable speed: yes | ||
| stroke rate (min.): | 10 | /min |
| stroke rate (max.): | 35 | /min |
| main drive power: | 99 | kW |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 1100 | mm |
| Transfer System | ||
|---|---|---|
| number of tool stations: | 14 | |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 130 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| height above floor level: | 7047 | mm |
| height under floor level: | 1650 | mm |
| total weight approx.: | 155000 | kg |
| Attachments (presses) | ||
|---|---|---|
| autom. tool clamping device: yes | ||
| decoiler: yes | ||
| leveller unit: yes | ||
| strip feeder: yes | ||
| feeder type: roll feeder | ||
| waste cutter: yes | ||
| press automation: yes | ||
| gripper transfer system: yes | ||
| safety guard / safety door: yes | ||
| 2-hand engagement: yes | ||
| European CE standards: yes | ||
| Press equipped with 2 feeing lines - one from the side for blank cutting in transfer mode and one in line for for progressive die operation. |
