PLATARG 312
Kategorije
Transferna stiskalnica - mehanska
Objekt
50301
Proizvajalec
PLATARG
Model
312
Leto
1978
Objekt
50301
| Press Design | ||
|---|---|---|
| number of slide actions: | 12 | |
| Slide | ||
|---|---|---|
| stroke: | 60 | mm |
| stroke rate (max.): | 210 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 5 | mm |
| variable speed: yes | ||
| stroke rate (min.): | 70 | /min |
| stroke rate (max.): | 210 | /min |
| main drive power: | 7.5 | kW |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 76 | mm |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2337 | mm |
| space requirements -front/back-: | 1016 | mm |
| total height: | 1930 | mm |
| total weight approx.: | 3140 | kg |

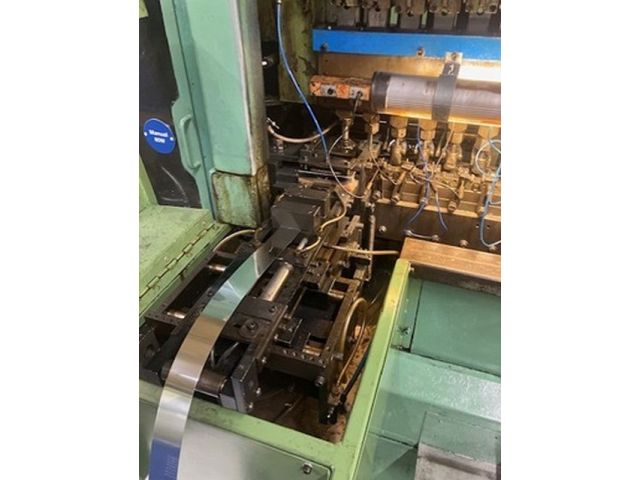

| Standard flat plate lifters Pneumatic feeder Machine still in production - video available |
| Standard flat plate lifters Pneumatic feeder Machine still in production - video available |
