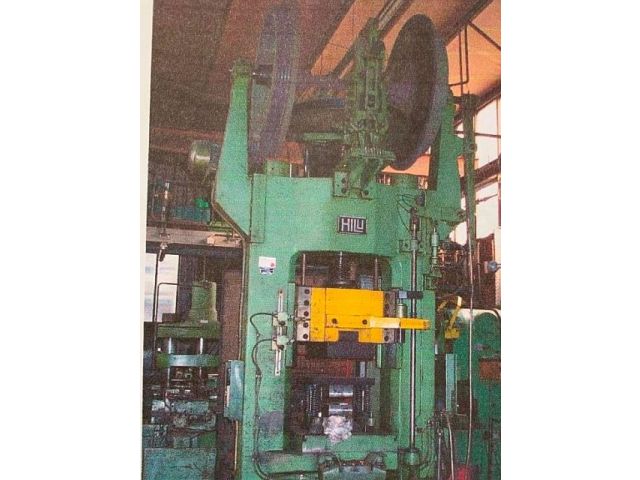

HILU SSP 140W
Kategorije
Frikcijska stiskalnica
Objekt
49232
Proizvajalec
HILU
Model
SSP 140W
Leto
1980
Objekt
49232
| Press Design | ||
|---|---|---|
| drive system: spindle | ||
| frame design: H-frame, monoblock | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 140 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 650 | mm |
| table surface (front-back): | 650 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 545 | mm |
| table surface (front-back): | 400 | mm |
| spigot hole diameter: | 80 | mm |
| stroke: | 350 | mm |
| stroke rate (max.): | 20 | /min |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 700 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 7.5 | kW |
| mains voltage: | 380 | V |
| Dimensions / weights | ||
|---|---|---|
| height under floor level: | 3300 | mm |
| total weight approx.: | 7.5 | kg |
| The machine is being sold by us on behalf of a customer. Unfortunately, a video is not available. The machine has been with the seller for over 15 years and has not been in operation since then. An inspection under power is unfortunately not possible. However, the seller assures that the machine has been in operation until recently and has run without any problems. Wear parts such as brake bands etc. may need to be replaced. |
