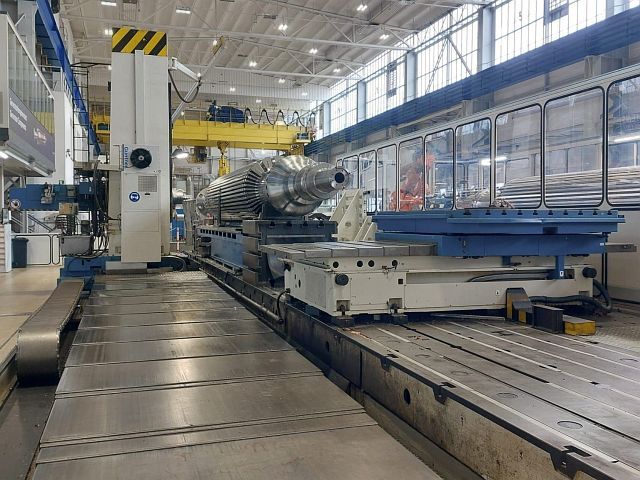

UNION BFP 130/6
Kategorije
Borverk - izvedba Platen
Objekt
56009
Proizvajalec
UNION
Model
BFP 130/6
Leto
1981
Last Overhaul
2004
Upravljanje
HEIDENHAIN TNC 430
Objekt
56009
| Working Range -cubic- | ||
|---|---|---|
| X-axis travel: | 14000 | mm |
| Y-axis travel: | 2500 | mm |
| Z-axis travel: | 380 | mm |
| W-axis travel: | 900 | mm |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 1200 | /min |
| tool fixture: ISO SK 50 | ||
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 15000 | mm |
| space requirements -front/back-: | 5000 | mm |
| total height: | 5000 | mm |
| total weight approx.: | 40000 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| Accessories: • Ti 1800 rotary table (clamping surface: 1800 mm x 2000 mm) • Chip conveyor • Angle heads Latest measurement report available upon request |
