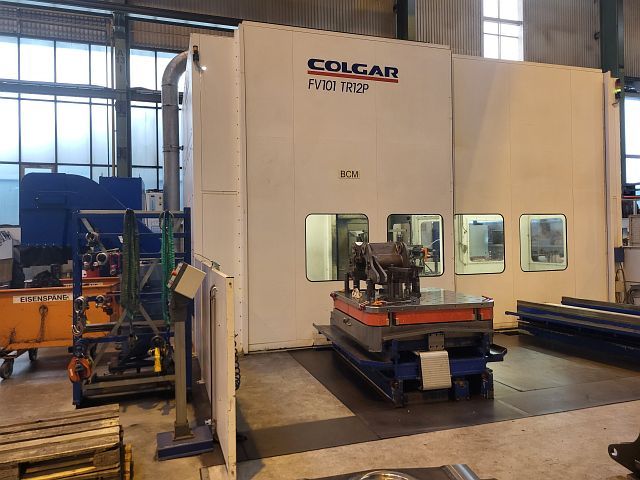

COLGAR FV 101 TR 12P
Kategorije
Obdelovalni center za vrtanje in rezkanje
Objekt
56427
Proizvajalec
COLGAR
Model
FV 101 TR 12P
Leto
2008
Upravljanje
HEIDENHAIN ITNC 530
Objekt
56427
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| X-axis travel: | 3000 | mm |
| Y-axis travel: | 2000 | mm |
| Z-axis travel: | 2500 | mm |
| W-axis travel: | 600 | mm |
| rotating range B-axis from: | 0 | ° |
| rotating range B-axis up to: | 360 | ° |
| Table | ||
|---|---|---|
| table surface (left-right): | 1450 | mm |
| table surface (front-back): | 1600 | mm |
| rotation axis: B | ||
| spindle / head | ||
|---|---|---|
| - positioning/indexing: | 2.5 | ° |
| tool fixture: ISO SK 50 | ||
| Axis drives | ||
|---|---|---|
| feed velocity (max): | 20000 | mm/min |
| traverse velocity X (max): | 20000 | mm/min |
| traverse velocity Y (max): | 20000 | mm/min |
| Tool magazine | ||
|---|---|---|
| magazin type: chain magazine | ||
| automatic workload equipment | ||
|---|---|---|
| number of store positions: | 2 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| Equipment: - 2 pallets - Angle head TA 100 (2.5°) - 3D measuring probe - Handwheel - Coolant tank with filter |
| Equipment: - 2 pallets - Angle head TA 100 (2.5°) - 3D measuring probe - Handwheel - Coolant tank with filter |
