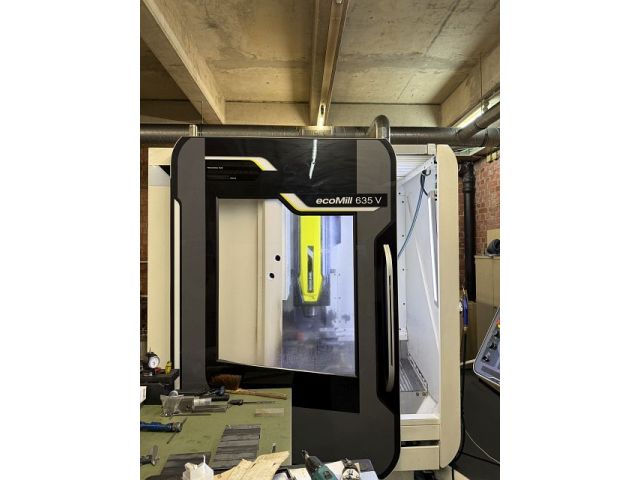

DMG MORI ECOMILL 635 V
Kategorije
Obdelovalni center - vertikalni
Objekt
51750
Proizvajalec
DMG MORI
Model
ECOMILL 635 V
Leto
2015
Upravljanje
SIEMENS 840 D CELOS
Objekt
51750
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| .. among of them simultaneous CNC axes: | 3 | |
| X-axis travel: | 635 | mm |
| Y-axis travel: | 510 | mm |
| Z-axis travel: | 460 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 790 | mm |
| table surface (front-back): | 560 | mm |
| workpiece load (max): | 600 | kg |
| spindle / head | ||
|---|---|---|
| spindle type: vertical | ||
| spindle revolutions (min): | 20 | /min |
| spindle revolutions (max): | 12000 | /min |
| tool fixture: ISO SK 40 | ||
| moĊ motorja S6 40%: | 13 | kW |
| moĊ motorja S1 100%: | 9 | kW |
| Axis drives | ||
|---|---|---|
| feed velocity (max): | 20000 | mm/min |
| Tool magazine | ||
|---|---|---|
| magazin type: chain magazine | ||
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 3850 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| band filtration unit: yes | ||
| through spindle coolant attachment: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
