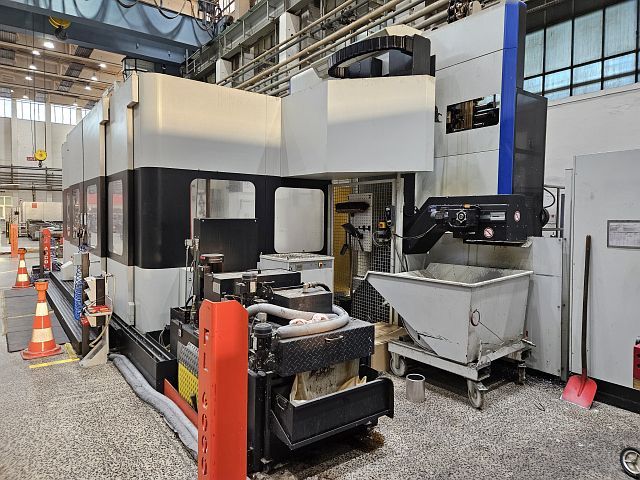

SORALUCE FLP 6000
Kategorije
Rezkalni stroj s pomiĊnim stebrom
Objekt
50854
Proizvajalec
SORALUCE
Model
FLP 6000
Leto
2017
Upravljanje
HEIDENHAIN TNC 640
Objekt
50854
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| X-axis travel: | 6000 | mm |
| Y-axis travel: | 2200 | mm |
| Z-axis travel: | 1300 | mm |
| spindle / head | ||
|---|---|---|
| - positioning/indexing: | 2.5 | ° |
| moĊ motorja: | 37 | kW |
| spindle revolutions (max): | 5000 | /min |
| tool fixture: ISO SK 50 | ||
| moĊ motorja: | 43 | kW |
| Axis drives | ||
|---|---|---|
| feed velocity (max): | 35000 | mm/min |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 14500 | mm |
| space requirements -front/back-: | 7500 | mm |
| total height: | 4905 | mm |
| total weight approx.: | 32000 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| band filtration unit: yes | ||
| through spindle coolant attachment: yes | ||
| European CE standards: yes | ||
| tool magazine with 60 slots Coolant system via shower ring and IKZ up to 70 bar Coolant type Coolant lubricant / air / air with MMS Electronic handwheel with cable transmission Accessories: Chip conveyor Coolingsystem |
| tool magazine with 60 slots Coolant system via shower ring and IKZ up to 70 bar Coolant type Coolant lubricant / air / air with MMS Electronic handwheel with cable transmission Accessories: Chip conveyor Coolingsystem |
