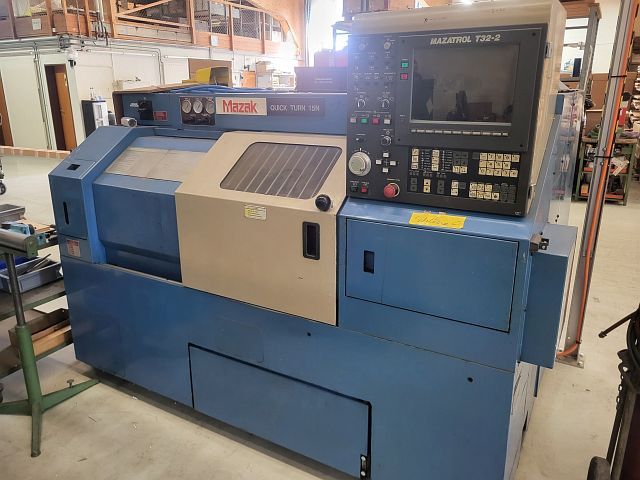

MAZAK QT 15 N
Kategorije
CNC stružnica
Objekt
52033
Proizvajalec
MAZAK
Model
QT 15 N
Leto
1990
Upravljanje
MAZATROL T32-2
Objekt
52033
| basic functions | ||
|---|---|---|
| number of spindles: | 1 | |
| number of turrets: | 1 | |
| live positions: no | ||
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 440 | mm |
| turning diameter (max): | 225 | mm |
| bar diameter (max): | 51 | mm |
| worpiece length max.: | 440 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (min): | 45 | /min |
| spindle revolutions (max): | 4500 | /min |
| spindle diameter: | 61 | mm |
| X/Z slide | ||
|---|---|---|
| rapid traverse Z: | 30000 | mm/min |
| rapid traverse X: | 30000 | mm/min |
| tool fixture: Turret | ||
| number of tool positions (total): | 12 | |
| x slide | ||
|---|---|---|
| X-axis travel: | 220 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2500 | mm |
| space requirements -front/back-: | 2600 | mm |
| total height: | 1800 | mm |
| total weight approx.: | 4300 | kg |
| attachments (turning) | ||
|---|---|---|
| tailstock: yes | ||
| chip conveyor: no | ||
| coolant unit: yes | ||
