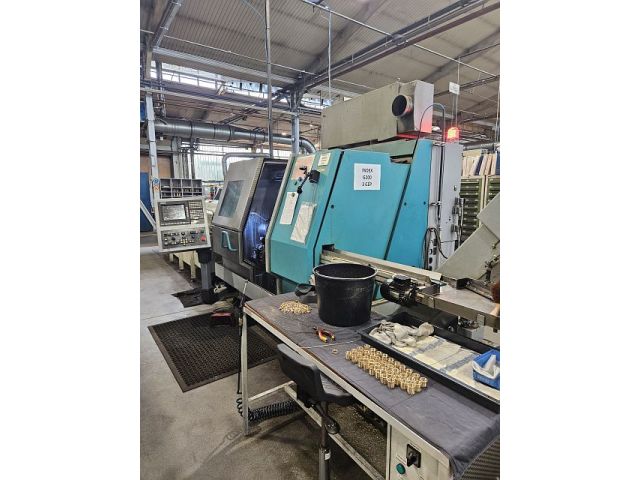

INDEX G 200
Kategorije
Obdelovalni center za struženje in rezkanje
Objekt
52085
Proizvajalec
INDEX
Model
G 200
Leto
2001
Upravljanje
SIEMENS SINUMERIK
Objekt
52085
| basic functions | ||
|---|---|---|
| design principle: inclined bed | ||
| number of spindles: | 2 | |
| - counter spindle: yes | ||
| number of turrets: | 2 | |
| number of c-axes: | 2 | |
| number of y-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 420 | mm |
| turning diameter (max): | 200 | mm |
| bar diameter (max): | 60 | mm |
| worpiece length max.: | 400 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| spindle bore diameter: | 60 | mm |
| c-axis: yes | ||
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| X/Z slide | ||
|---|---|---|
| number of tool positions (total): | 14 | |
| - rotation speeds (max): | 6000 | /min |
| - drive power: | 5.5 | kW |
| Tool magazine | ||
|---|---|---|
| number of positions: | 14 | |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 44 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2450 | mm |
| space requirements -front/back-: | 1400 | mm |
| total height: | 1850 | mm |
| total weight approx.: | 5500 | kg |
| attachments (turning) | ||
|---|---|---|
| chip conveyor: yes | ||
| Accessories - Chip conveyor - Iemca Master 880R bar feeder |
| Accessories - Chip conveyor - Iemca Master 880R bar feeder |
