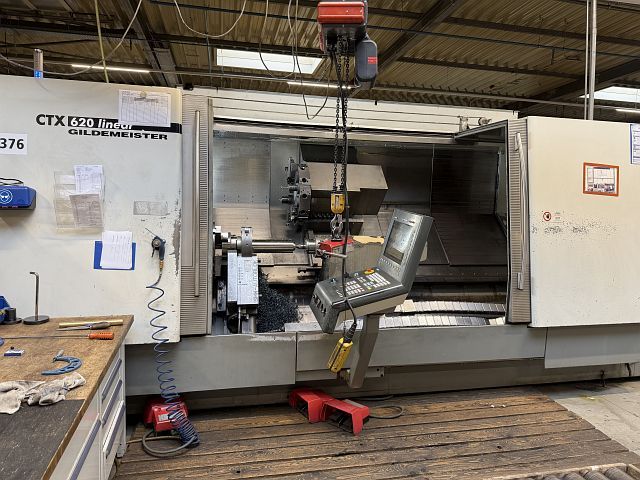

GILDEMEISTER CTX 620 LINEAR V1
Kategorije
CNC lathe
Objekt
54089
Proizvajalec
GILDEMEISTER
Model
CTX 620 LINEAR V1
Leto
2007
Upravljanje
SIEMENS 840 D
Objekt
54089
| basic functions | ||
|---|---|---|
| design principle: inclined bed | ||
| number of spindles: | 1 | |
| number of x/z slides: | 1 | |
| number of turrets: | 1 | |
| live positions: no | ||
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 800 | mm |
| turning diameter (max): | 600 | mm |
| bar diameter (max): | 121 | mm |
| worpiece length max.: | 2080 | mm |
| workpiece weight max.: | 1200 | kg |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 2500 | /min |
| moĊ motorja S6 40%: | 52 | kW |
| moĊ motorja S1 100%: | 40 | kW |
| spindle diameter: | 180 | mm |
| spindle bore diameter: | 136 | mm |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 2100 | mm |
| X-axis travel: | 382.5 | mm |
| traverse velocity Z (max): | 35000 | mm/min |
| traverse velocity X (max): | 60000 | mm/min |
| tool fixture: Turret | ||
| number of tool positions (total): | 12 | |
| tailstock | ||
|---|---|---|
| distance betw. centers (max): | 2455 | mm |
| sleeve stroke: | 2100 | mm |
| sleeve diameter: | 150 | mm |
| holding force (max.): | 180 | kN |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 58 | kW |
| mains power supply: | 73 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 6521 | mm |
| space requirements -front/back-: | 2717 | mm |
| total height: | 2297 | mm |
| total weight approx.: | 12000 | kg |
| attachments (turning) | ||
|---|---|---|
| self-centering chuck: | 1 | |
| - clamping diameter: | 400 | mm |
| tailstock: yes | ||
| steadies (number): | 1 | |
| chip conveyor: yes | ||
| coolant unit: yes | ||
| coolant through turret: yes | ||
| European CE standards: yes | ||
