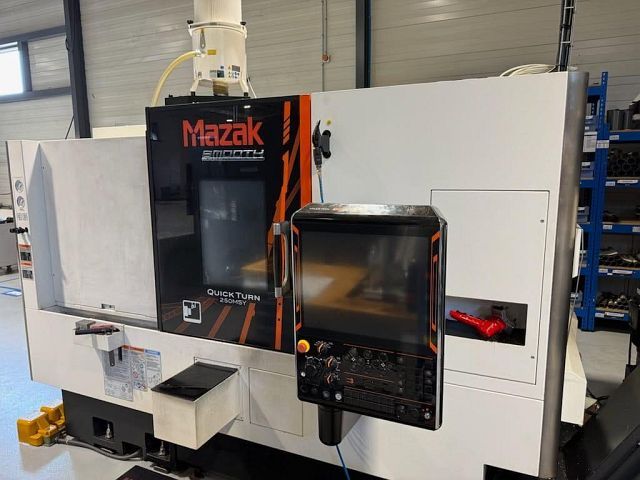

MAZAK QUICK TURN 250 MSY
Kategorije
CNC lathe
Objekt
55057
Proizvajalec
MAZAK
Model
QUICK TURN 250 MSY
Leto
2017
Upravljanje
MAZATROL SMOOTHG
Objekt
55057
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| number of turrets: | 1 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 380 | mm |
| bar diameter (max): | 80 | mm |
| worpiece length max.: | 539 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 4000 | /min |
| moĊ motorja: | 26 | kW |
| vretena navor: | 465 | Nm |
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 6000 | /min |
| moĊ motorja: | 11 | kW |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 625 | mm |
| X-axis travel: | 100 | mm |
| Y-axis travel: | 234 | mm |
| - rotation speeds (max): | 4500 | /min |
| - drive power: | 5.5 | kW |
| attachments (turning) | ||
|---|---|---|
| chip conveyor: yes | ||
| European CE standards: yes | ||
| 3-jaw chuck Kitagawa BB210 Parts catcher Interface for bar magazine Tool holder package, incl. driven holders High-pressure coolant pump, 15 bar Chip conveyor 26 kW main spindle |
| 3-jaw chuck Kitagawa BB210 Parts catcher Interface for bar magazine Tool holder package, incl. driven holders High-pressure coolant pump, 15 bar Chip conveyor 26 kW main spindle |
