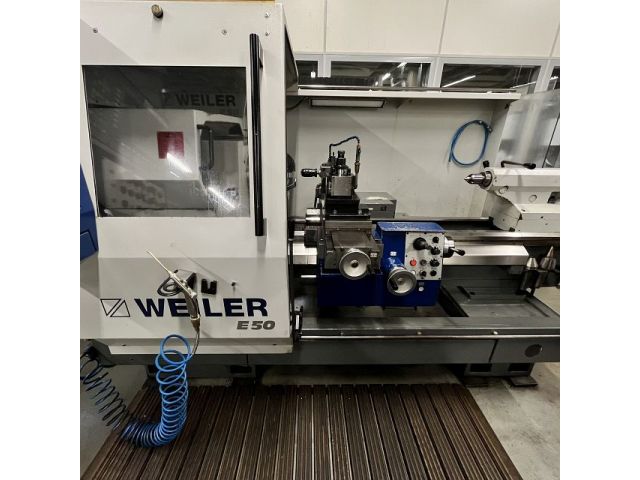

WEILER E 50
Kategorije
Stružnica - cikliĊna
Objekt
52215
Proizvajalec
WEILER
Model
E 50
Leto
2012
Objekt
52215
| basic functions | ||
|---|---|---|
| number of spindles: | 1 | |
| number of x/z slides: | 1 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 570 | mm |
| turning diameter (max): | 340 | mm |
| worpiece length max.: | 1000 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 2500 | /min |
| tailstock | ||
|---|---|---|
| distance betw. centers (max): | 1000 | mm |
| sleeve stroke: | 200 | mm |
| sleeve diameter: | 80 | mm |
| taper: MK 5 | ||
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3250 | mm |
| space requirements -front/back-: | 2300 | mm |
| total height: | 1800 | mm |
| total weight approx.: | 3400 | kg |
| Machine in very good condition Features: - 3-jaw chuck - Various soft jaws |
