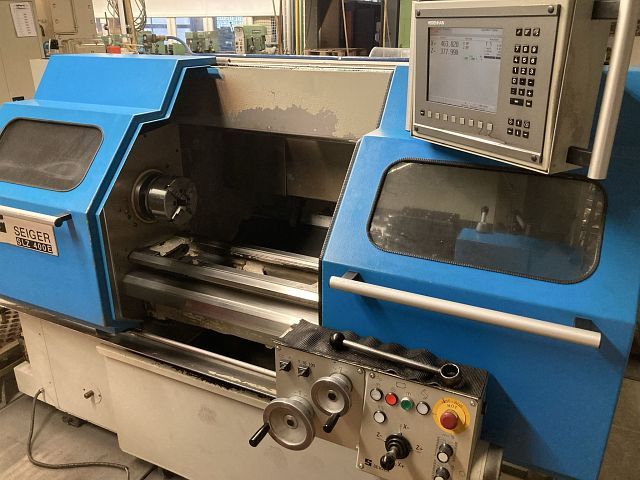

SEIGER SLZ 400 E
Kategorije
Stružnica - cikliĊna
Objekt
52265
Proizvajalec
SEIGER
Model
SLZ 400 E
Leto
2001
Upravljanje
HEIDENHAIN MANUAL PLUS M
Objekt
52265
| basic functions | ||
|---|---|---|
| design principle: flatbed | ||
| - number of bed guideways: | 1 | |
| number of spindles: | 1 | |
| number of x/z slides: | 1 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 410 | mm |
| turning diameter (max): | 400 | mm |
| worpiece length max.: | 1000 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (min): | 1 | /min |
| spindle revolutions (max): | 4000 | /min |
| spindle bore diameter: | 55 | mm |
| tailstock | ||
|---|---|---|
| sleeve stroke: | 120 | mm |
| taper: MK 4 | ||
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 16 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2600 | mm |
| space requirements -front/back-: | 1600 | mm |
| total height: | 1900 | mm |
| total weight approx.: | 2700 | kg |
| attachments (turning) | ||
|---|---|---|
| tailstock: yes | ||
