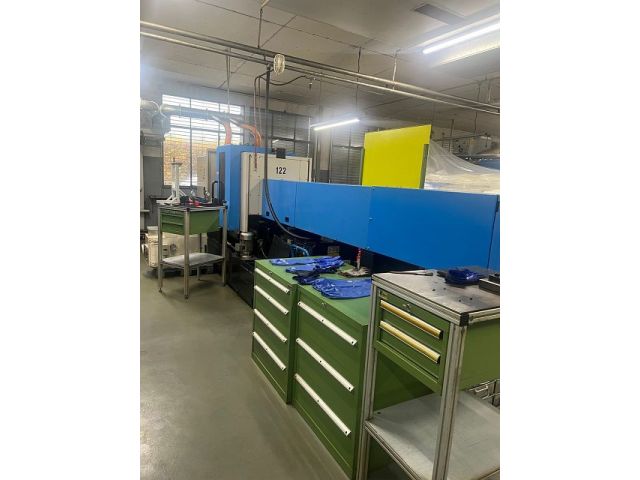

SCHÜTTE AG 20
Kategorije
veĊvretenska stružnica
Objekt
54672
Proizvajalec
SCHÜTTE
Model
AG 20
Leto
2001
Upravljanje
SIEMENS S7
Objekt
54672
| basic functions | ||
|---|---|---|
| number of spindles: | 8 | |
| live positions: yes | ||
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 20 | mm |
| turning diameter (max): | 20 | mm |
| bar diameter (max): | 20 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (min): | 800 | /min |
| spindle revolutions (max): | 10000 | /min |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 10000 | mm |
| total weight approx.: | 5200 | kg |
| Technical Data - Spindle diameter: 250 mm - Max. bar feed: 80 mm - Longitudinal slide – travel: 63/50 mm - Longitudinal slide – special travel: 90/72 mm - Cross slide – travel: 32/20 mm |
| Technical Data - Spindle diameter: 250 mm - Max. bar feed: 80 mm - Longitudinal slide – travel: 63/50 mm - Longitudinal slide – special travel: 90/72 mm - Cross slide – travel: 32/20 mm |
