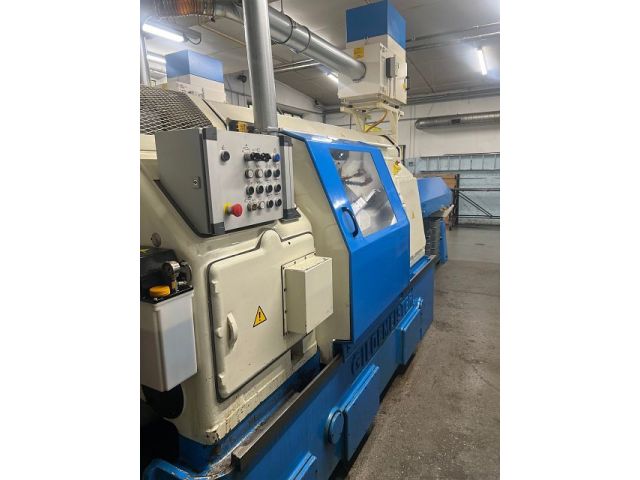

GILDEMEISTER AS 48
Kategorije
veĊvretenska stružnica
Objekt
54678
Proizvajalec
GILDEMEISTER
Model
AS 48
Leto
1971
Last Overhaul
2018
Upravljanje
SIEMENS
Objekt
54678
| basic functions | ||
|---|---|---|
| number of spindles: | 6 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 48 | mm |
| turning diameter (max): | 48 | mm |
| bar diameter (max): | 48 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (min): | 180 | /min |
| spindle revolutions (max): | 2120 | /min |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 17.5 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 6130 | mm |
| space requirements -front/back-: | 1400 | mm |
| total weight approx.: | 10200 | kg |
| tech. Details - max diameter hexagonal bars 42 mm - max diameter square bars 34 mm - max advancement bars 225 mm - max length shooting 125 mm - max stroke longitudinal carriages 150 mm - Trigger thread head up to approx. M27 - Number of speeds 17 - Number of tool stations 12 |
