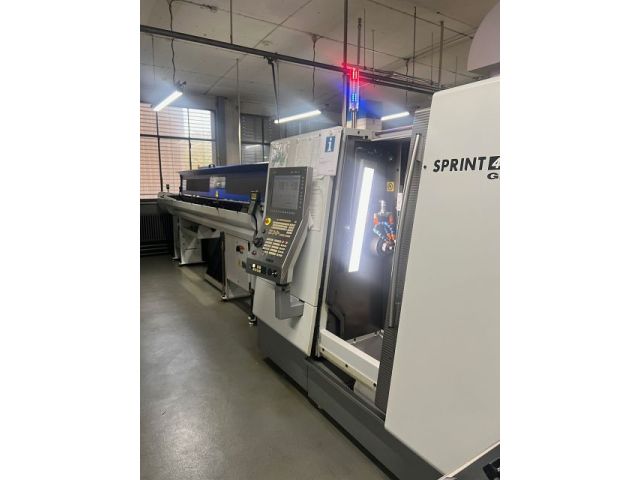

GILDEMEISTER SPRINT 42
Kategorije
veĊvretenska stružnica
Objekt
54681
Proizvajalec
GILDEMEISTER
Model
SPRINT 42
Leto
2008
Upravljanje
FANUC 160 I
Objekt
54681
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| number of c-axes: | 2 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 42 | mm |
| turning diameter (max): | 42 | mm |
| bar diameter (max): | 42 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 6500 | /min |
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 6500 | /min |
| X/Z slide | ||
|---|---|---|
| X-axis travel: | 65 | mm |
| Y-axis travel: | 350 | mm |
| rapid traverse Z: | 30000 | mm/min |
| rapid traverse X: | 30000 | mm/min |
| rapid traverse Y: | 30000 | mm/min |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 320 | mm |
| X-axis travel: | 265 | mm |
| Y-axis travel: | 326 | mm |
| rapid traverse Y: | 30000 | mm/min |
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 54 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 4900 | mm |
| space requirements -front/back-: | 1630 | mm |
| total height: | 1920 | mm |
| total weight approx.: | 4400 | kg |
| attachments (turning) | ||
|---|---|---|
| bar magazine: yes | ||
| chip conveyor: yes | ||
| Main spindle Ø42mm / Counter spindle Ø38mm Axes: Z1 / Z2 X1 / X2 Y1 / Z2 C1 / C2 Tank capacity: 650 l - 8 internal tool stations - 9 external tool stations - Turning tool shank 16x16 Equipment: - Includes bar feeder - Chip conveyor |
| Main spindle Ø42mm / Counter spindle Ø38mm Axes: Z1 / Z2 X1 / X2 Y1 / Z2 C1 / C2 Tank capacity: 650 l - 8 internal tool stations - 9 external tool stations - Turning tool shank 16x16 Equipment: - Includes bar feeder - Chip conveyor |
