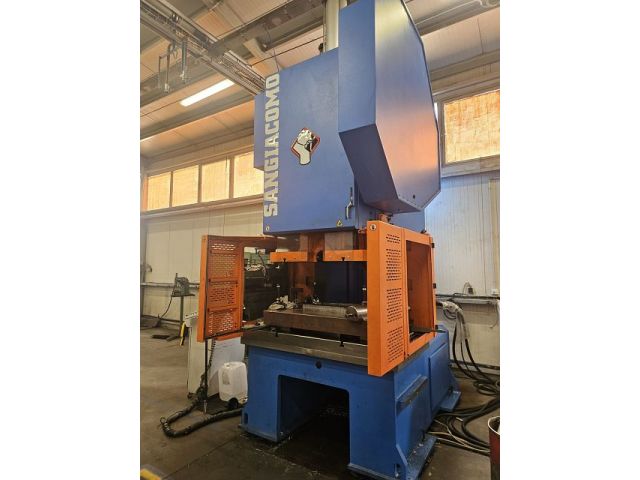

SANGIACOMO T-250R CE
Categories
Blanking Press -mechanical-
Object
57260
Brand
SANGIACOMO
Model
T-250R CE
YoM
2023
Object
57260
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| openings in uprights: yes | ||
| number of slide actions: | 1 | |
| table cushion: no | ||
| quick die change system: no | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 250 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1450 | mm |
| table surface (front-back): | 800 | mm |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 100 | mm |
| stroke min.: | 15 | mm |
| stroke max.: | 220 | mm |
| stroke rate (min.): | 20 | /min |
| stroke rate (max.): | 50 | /min |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 662 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 22 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 22000 | kg |
| Attachments (presses) | ||
|---|---|---|
| decoiler: yes | ||
| leveller unit: yes | ||
| feeder type: roll feeder | ||
| light barrier: yes | ||
| 2-hand engagement: yes | ||
| acc. to actual accident protection regulation: yes | ||
| European CE standards: yes | ||
| Press: Braking distance 206 ms Safety clearance 330 mm Minimum height of the closed mould 460 mm Weight of the upper mould 1000 kg Flywheel speed per minute 176 – 370 – 441 Feeding line From 2007, maximum sheet width 500 mm, maximum coil weight 4000 kg Master VPJM 500/80 feeding unit MASTER RPMA 500/800 levelling machine JO 500/4000 coil |
