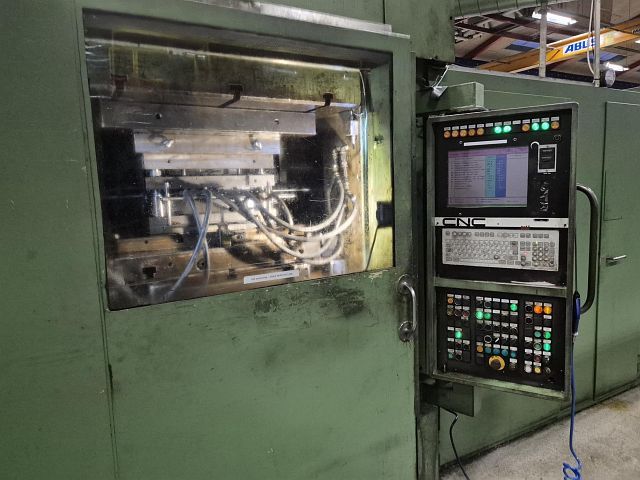

SCHMID HSR630
Categories
Fine Blanking Press -hydraulical-
Object
56524
Brand
SCHMID
Model
HSR630
YoM
1991
Controls
HONEYWELL IPC 620-20
Object
56524
| Press Design | ||
|---|---|---|
| drive system: hydraulic | ||
| quick die change system: yes | ||
| Slide | ||
|---|---|---|
| total force (nominal): | 630 | to |
| stroke: | 155 | mm |
| Counter Ram | ||
|---|---|---|
| nominal force: | 160 | to |
| V-Ring | ||
|---|---|---|
| nominal force: | 320 | to |
| Tool Dimensions | ||
|---|---|---|
| lower table (left-right): | 650 | mm |
| lower table (front-back): | 650 | mm |
| upper table (left-right): | 870 | mm |
| upper table (front-back): | 950 | mm |
| distance between columns (H-frame): | 872 | mm |
| passline opening (free passage in side columns): | 470 | mm |
| Strip-Feeder | ||
|---|---|---|
| feeder type: grip feeder | ||
| sheet width max.: | 450 | mm |
| sheet thickness max.: | 30 | mm |
| feeding step max.: | 400 | mm |
| Crop Shear | ||
|---|---|---|
| working width max.: | 450 | mm |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 28000 | kg |
| Attachments -Fineblanking Press- | ||
|---|---|---|
| autom. tool clamping device: yes | ||
| closed cabin: yes | ||
| decoiler: no | ||
| leveller unit: no | ||
| waste cutter: yes | ||
