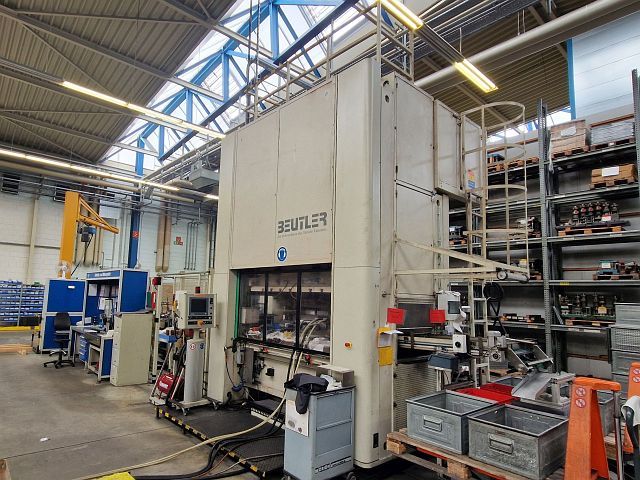

BEUTLER NOVA NAD 2000.18
Categories
Progressive Die Press -mechanical-
Object
56930
Brand
BEUTLER NOVA
Model
NAD 2000.18
YoM
2009
Object
56930
| Press Design | ||
|---|---|---|
| openings in uprights: yes | ||
| table cushion: no | ||
| quick die change system: yes | ||
| feedstock transport direction: left to right | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 200 | to |
| nominal work capacity: | 16 | kNm |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1800 | mm |
| table surface (front-back): | 1100 | mm |
| opening in bed (left-right): | 880 | mm |
| opening in bed (front-back): | 350 | mm |
| Slide | ||
|---|---|---|
| stroke: | 220 | mm |
| stroke rate (max.): | 130 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 150 | mm |
| automatic stroke adjustment: yes | ||
| stroke min.: | 20 | mm |
| stroke max.: | 220 | mm |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 550 | mm |
| passline opening (free passage in side columns): | 720 | mm |
| Decoiler | ||
|---|---|---|
| sheet width max.: | 250 | mm |
| coil weight max.: | 2 | to |
| max. diameter of coil: | 1500 | mm |
| Leveller Unit | ||
|---|---|---|
| sheet thickness max.: | 4 | mm |
| sheet thickness min.: | 0.5 | mm |
| number of leveller rolls: | 9 | |
| diameter of leveller rolls: | 80 | mm |
| feed velocity max.: | 80 | m/min |
| Strip-Feeder | ||
|---|---|---|
| feeding step min.: | 0.1 | mm |
| feeding step max.: | 10000 | mm |
| Dimensions / weights | ||
|---|---|---|
| height above floor level: | 4314 | mm |
| height under floor level: | 0 | mm |
| total weight approx.: | 27500 | kg |
| Attachments (presses) | ||
|---|---|---|
| decoiler: yes | ||
| leveller unit: yes | ||
| strip feeder: yes | ||
| feeder type: roll feeder | ||
| band lubrication system: yes | ||
| Accessories / Equipment: + Coil line GSW Schwabe MHH2/1500 – RMA 25/98 + Eckardt roller strip lubrication system + Zehnder + Sommer EV320 AGM – EDS S50 servo roll feed + Tooling consoles / die consoles + Mayfran scrap conveyor + vibration dampers |
