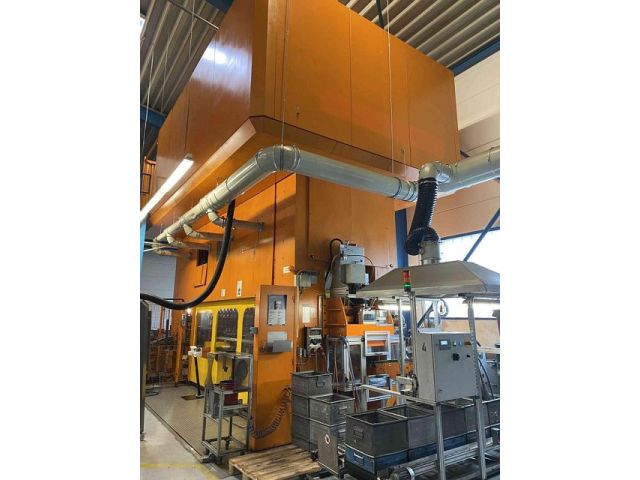

INVERNIZZI T630
Categories
Transfer Press
Object
57400
Brand
INVERNIZZI
Model
T630
YoM
2009
Object
57400
| Press Design | ||
|---|---|---|
| drive system: servomechanic | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 630 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 5450 | mm |
| table surface (front-back): | 910 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 5500 | mm |
| table surface (front-back): | 800 | mm |
| slide (mechan. Press) | ||
|---|---|---|
| stroke adjustment: yes | ||
| stroke min.: | 220 | mm |
| stroke max.: | 350 | mm |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 680 | mm |
| Coil Chair | ||
|---|---|---|
| coil weight max.: | 8 | to |
| Decoiler | ||
|---|---|---|
| sheet width max.: | 410 | mm |
| coil weight max.: | 8 | to |
| max. diameter of coil: | 2000 | mm |
| Transfer System | ||
|---|---|---|
| number of tool stations: | 20 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 28000 | mm |
| space requirements -front/back-: | 15000 | mm |
| total weight approx.: | 200000 | kg |
| Attachments (presses) | ||
|---|---|---|
| decoiler: yes | ||
| leveller unit: yes | ||
| strip feeder: yes | ||
| European CE standards: yes | ||
| Complete press line - Press (20 stations) - Coiler - Straightening machine - Feeder Technical Data: - Step spacing 225 mm - Max. pressing force per station 60 tons - Stroke rate 20-60/min - Pulling height 105 mm - Ram stroke 220-350 mm (adjustment in 1 mm increments) |
